Polyurethane Sandwich Panels: Types & Applications

Novos Produtos

Polyurethane Sandwich Panels: Types & Applications

2026-06-24

Polyurethane sandwich panels are among the most versatile building materials in modern construction. Composed of a rigid polyurethane foam core bonded between two metal facings,typically steel or aluminum,these panels deliver exceptional thermal insulation and structural strength. Their applications span from roofing and wall cladding to cold storage facilities and industrial buildings. This guide explores the main panel types and their optimal uses across residential, commercial, and industrial sectors.

Polyurethane sandwich panels are classified according to their uses

1. Polyurethane roofing panels (roof panels)

2. Polyurethane wall panels (wall panels)

3. Polyurethane cold storage panels.

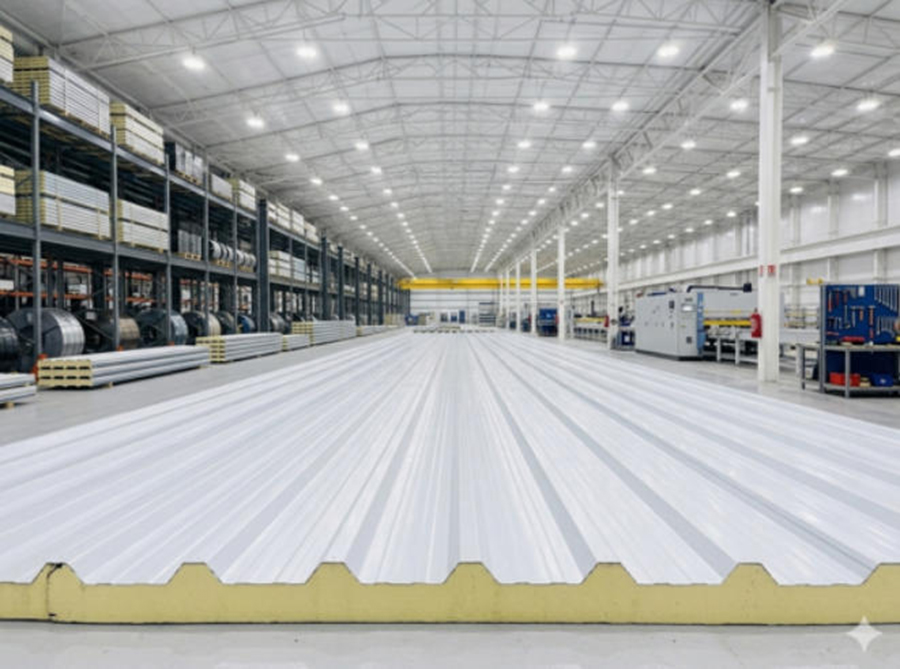

polyurethane roof panels

Advantages of polyurethane roof panels

NO

Advantages of polyurethane roof panels.

1

Excellent thermal insulation performance, low thermal conductivity.

2

Lightweight and high-strength, easy installation, high construction efficiency.

3

One-piece molding, good airtightness, easy waterproofing construction.

4

Regular dimensions, combining enclosure and insulation functions.

5

Suitable for various industrial, agricultural, and warehousing buildings with roof slopes of 3%.

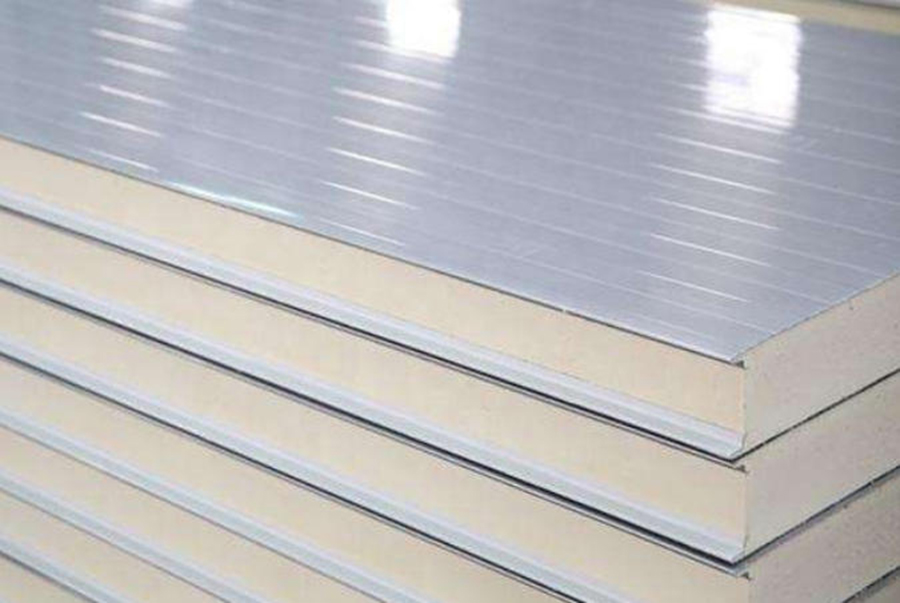

polyurethane wall panels

Advantages of polyurethane wall panels

NO

Advantages of polyurethane wall panels

1

Good thermal insulation, heat insulation, and sound insulation effects.

2

Polyurethane is non-combustible, meeting fire safety requirements.

3

Lightweight, prefabricated installation, efficient construction.

4

Due to the combined effect of the upper and lower panels and polyurethane,It has high strength and rigidity.

5

The lower panel is smooth and flat with clear lines,Very aesthetically pleasing.

Polyurethane cold storage panels are classified as follows depending on their application

Fresh keeping warehouse

Temperature maintained at 0℃, ideal panel thickness 10cm

Fresh-keeping warehouses maximize the preservation of the original quality and freshness of agricultural products. Even after a period of storage, fresh produce retains its freshness and quality, remaining almost exactly as it was when harvested.

Refrigerated warehouse

Temperature maintained at -18℃, ideal panel thickness 15cm

Refrigerated warehouses are primarily used for the constant-temperature storage of food, dairy products, meat, seafood, poultry, fruits and vegetables, frozen drinks, flowers, plants, tea, pharmaceuticals, chemical raw materials, and electronic instruments.

Freezer warehouse

Temperature maintained at -38℃, ideal panel thickness 20cm

Freezer warehouses are mainly used for the freezing and refrigeration of food, pharmaceuticals, and machinery. They maintain a constant low temperature through artificial refrigeration.

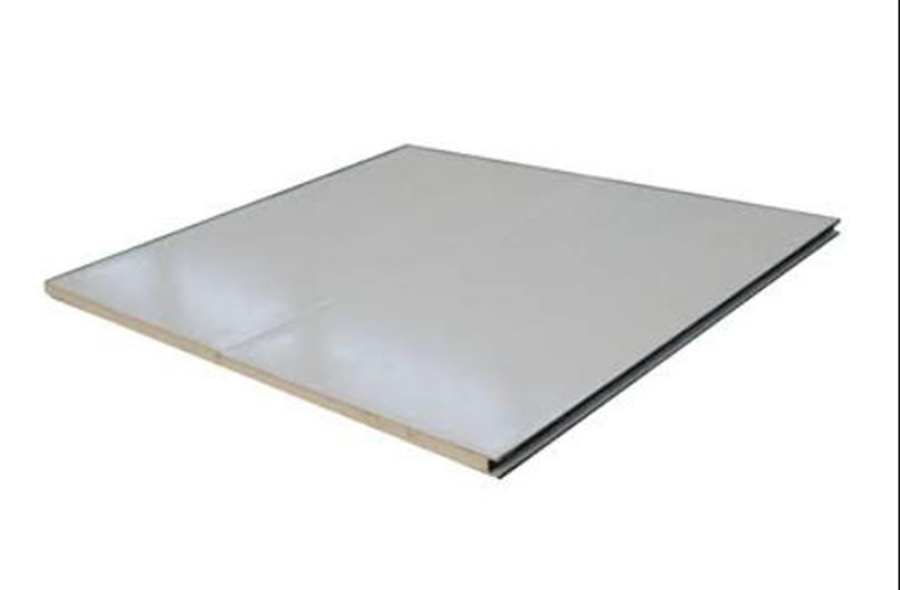

polyurethane cold storage panels

Advantages of polyurethane cold storage panels

NO

Advantages of polyurethane cold storage panels

1

Extremely low thermal conductivity, providing excellent insulation and cold preservation in low-temperature environments;

2

Good airtightness, effectively preventing moisture penetration;

3

Prefabricated assembly, convenient installation, and rapid construction.

To sum up, polyurethane sandwich panels deliver exceptional thermal performance, structural integrity, and installation efficiency across diverse building applications. Whether for industrial roofing, commercial facades, or cold storage facilities, selecting the right panel type ensures optimal energy savings, regulatory compliance, and long-term durability for any construction project.

For more information needed or any inquiry,please feel free to contact Yumisteel team.
